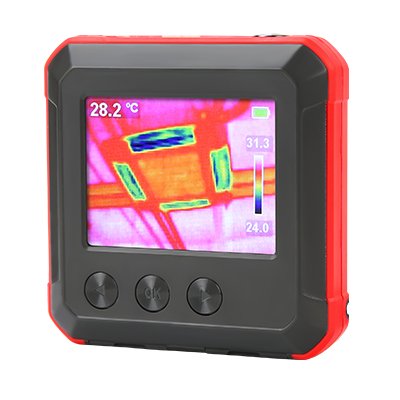

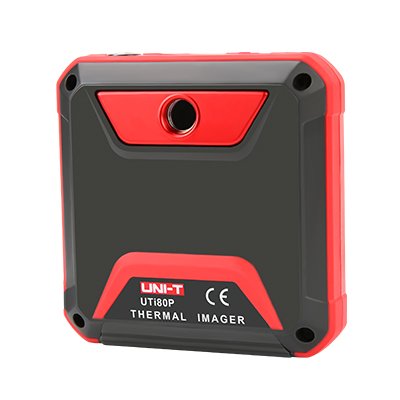

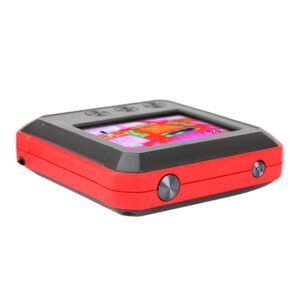

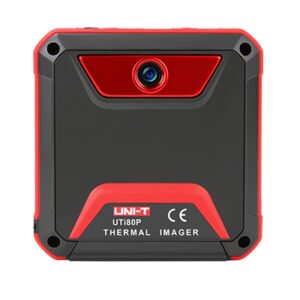

UTi80P Portable Thermal Imager
UTi80P is Uni-Trend’s latest portable infrared thermal imager with high-resolution (80×60). Users can observe the target object clearly at night and measure the temperature. UTi80P Cube has mulitiple palettes for different scenes. It is equipped with upper computer software and can transmit data through the USB interface, display and analyze all pixel temperatures, and perform high temperature capture which can quickly identify the hot spot location. Designed with high and low temperature alarm/dynamic tracking, adjustable emissivity, UTi80 Cube can meet various user requirements, and its palm-sized volume and complete functions makes it a best choice for DIY hobbyist. It is an ideal tool for on-site temperature detection.
Applications:
UTi80P Cube is widely used in power/HVAC equipment maintenance, electronic power/automotive manufacturing, construction, energy, chemical and smelting industries.
Features:
1. Pocket size thermal imager (76mm x 76mm x 22mm)
2. 80 x 60 pixels
3. Temperature range: -10 ~ 400℃
4. Stores photos in SD card
5. High/low temperature tracking
6. Rechargeable lithium battery (through micro USB)
7. PC software for temperature analysis and reporting
- Description
- Reviews (0)
Description
UTi80P is Uni-Trend’s latest portable infrared thermal imager with high-resolution (80×60). Users can observe the target object clearly at night and measure the temperature. UTi80P Cube has mulitiple palettes for different scenes. It is equipped with upper computer software and can transmit data through the USB interface, display and analyze all pixel temperatures, and perform high temperature capture which can quickly identify the hot spot location. Designed with high and low temperature alarm/dynamic tracking, adjustable emissivity, UTi80 Cube can meet various user requirements, and its palm-sized volume and complete functions makes it a best choice for DIY hobbyist. It is an ideal tool for on-site temperature detection.
Applications:
UTi80P Cube is widely used in power/HVAC equipment maintenance, electronic power/automotive manufacturing, construction, energy, chemical and smelting industries.
Features:
1. Pocket size thermal imager (76mm x 76mm x 22mm)
2. 80 x 60 pixels
3. Temperature range: -10 ~ 400℃
4. Stores photos in SD card
5. High/low temperature tracking
6. Rechargeable lithium battery (through micro USB)
7. PC software for temperature analysis and reporting
Tech. Specifications:
| Specifications | |
| Model | UTi80P |
| Temperature range | -10~400℃ |
| Basic accuracy | ±2℃ or ±2% (-10~140℃); ±3℃ or ±3% (140~450℃) |
| Resolution | 0.1℃ |
| Emissivity | 0.95 (0.1~0.99 adjustable) |
| NETD | ≤150mK (0.15℃) |
| IR resolution | 80*60 |
| Pixel size | 17μm |
| Palettes | Iron, rainbow, grey |
| FOV | 51º (H) * 38º (V) |
| Image frequency | ≤9Hz |
| Features | |
| High and low temperature alarm | √ |
| High and low temperature tracking | √ |
| Backlight | High, medium, low |
| Display | 2.4-inch TFT LCD |
| Display resolution | 320 x 240 pixels |
| General Characteristics | |
| Power | Li-ion battery: 3.7V/1300mAh |
| Display size | 48mm x 36mm |
| Product color | Red and grey |
| Product net weight | 125g |
| Product size | 76mm x 76mm x 22mm |
| Standard accessories | Micro SD card, micro USB cable, carrying bag |
| Standard individual packing | Blister, gift box, English manual |
| Standard quantity per carton | 5pcs |
| Standard carton measurement | 390mm x 130mm x 140mm |
| Standard carton gross weight | 2.8kg |
