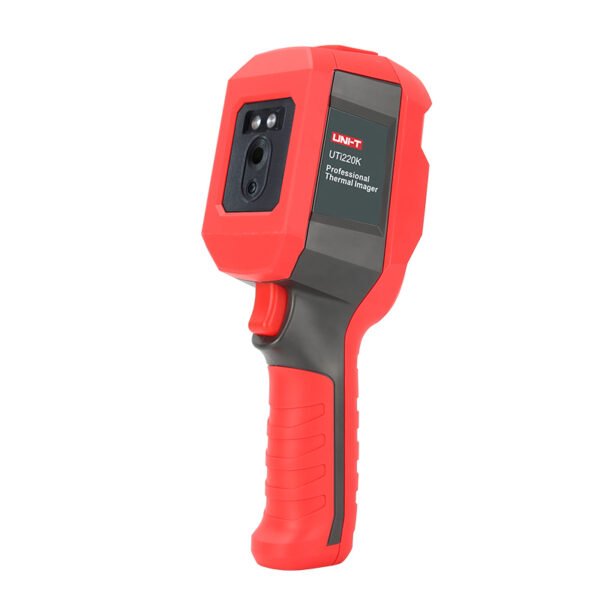

UTi220K Thermal Imager
The high temperature limit can be set, for example to 37.3℃. Then, temperatures ≥37.3℃ will trigger LED light，high temperature screen warning, and buzzer. If PC software is also connected， software will automatically record data and image when alarm is triggered.
Features:
1. PC software auto record high temperature data and image
2. Infrared resolution: 200×150
3. Alarm buzzer
4. Region of interest mode (ROI)
5. Temperature range: 30℃~45℃
6. Accuracy: ±0.5℃
7. Photograph function with SD card storage
8. PC software analysis
9. Real-time image transmission
10. Visual camera (640×480)
11. Type-C USB interface
12. 1/4″ tripod mounting hole
- Description
- Reviews (0)
Description
The high temperature limit can be set, for example to 37.3℃. Then, temperatures ≥37.3℃ will trigger LED light，high temperature screen warning, and buzzer. If PC software is also connected， software will automatically record data and image when alarm is triggered.
Features:
1. PC software auto record high temperature data and image
2. Infrared resolution: 200×150
3. Alarm buzzer
4. Region of interest mode (ROI)
5. Temperature range: 30℃~45℃
6. Accuracy: ±0.5℃
7. Photograph function with SD card storage
8. PC software analysis
9. Real-time image transmission
10. Visual camera (640×480)
11. Type-C USB interface
12. 1/4″ tripod mounting hole
Tech. Specifications:
| Specifications | |
| Model | UTi220K |
| Sensor | Uncooled focal plane array |
| Temperature range | 30℃~45℃ |
| Resolution | 0.1℃ |
| Accuracy | ±0.5℃（ @ 25℃ ambient temperature） |
| Optimal measuring distance | 1m |
| Temperature measurement response time | ≤500ms (95% of reading) |
| Thermal resolution | 30000 (200×150) |
| Pixel dimemsions | 12μm |
| Palettes | Iron red, rainbow, glowing white, glowing black, glowing red, lava, high-contrast rainbow |
| Bandwidth of infrared spectroscopy | 8~14μm |
| Field of view (FOV) | 35°(H) × 26°(V) |
| Instantaneous field of view (IFOV) | 3.1mrad |
| Thermal imaging sensitivity | ＜100mk |
| Frame rate | ＜9Hz |
| Temperature display | Center temperature measurement and high temperature tracking (default) |
| Image format | BMP |
| Image modes | Thermal camera, visible camera, ROI |
| Temperature measuring point | Besides central point, 3 temperature measuring points can be added |
| Visual camera/Buzzer | √ |
| Resolution of visible camera | 640×480 |
| Display resolution | 320×240 |
| PC analysis software | Auto record high temperature data and image |
| Real-time image transmission | Through PC software |
| Data communication | Type-C USB |
| Auto power off | Selectable (5min, 10min, 30min), 30min auto power off (default) |
| Battery life | ≥6 hours |
| Charging time | ≤5 hours |
| Charging voltage/current | 5V/2A |
| Image storage | Micro SD card |
| Features | |
| High and low temperature alarm | √ |
| High and low temperature tracking | √ |
| Backlight | High, medium, low |
| Display | 2.4-inch TFT LCD |
| Display resolution | 320 x 240 pixels |
| General Characteristics | |
| Power | A single Li-ion 3.7V/5000mAh 26650 battery |
| Display | 2.8″ TFT LCD |
| Product color | Red and grey |
| Product size | 236mm x 75.5mm x 86mm |
| Standard accessories | Manual, Type-C USB cable, 16GB TF card |
| Standard carton gross weight | 2.2kg |
