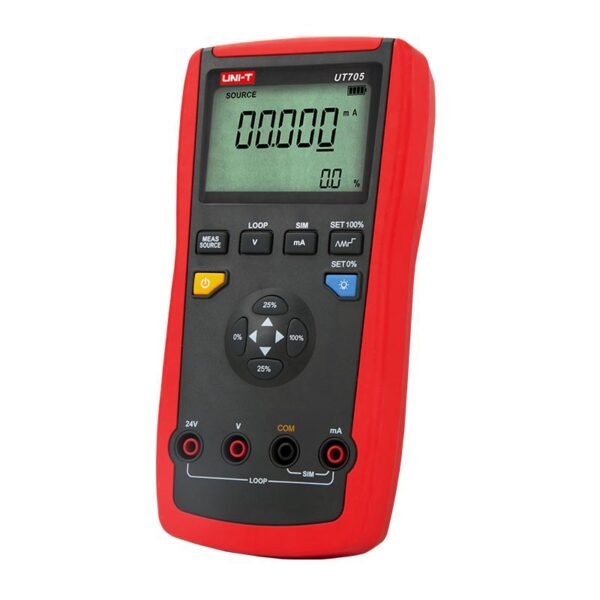

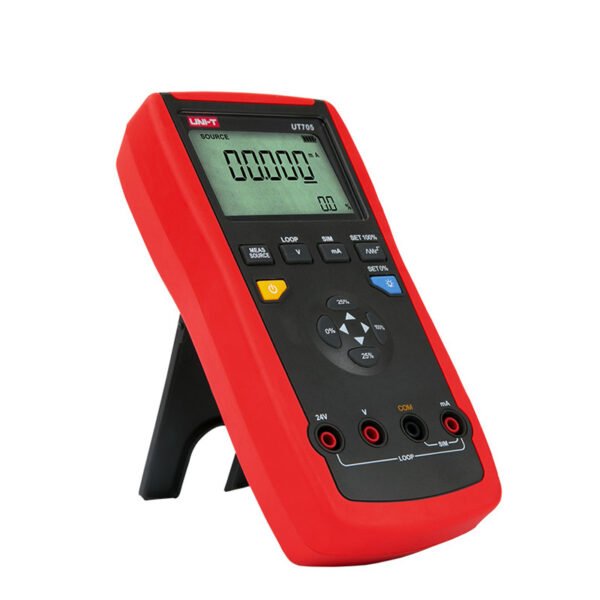

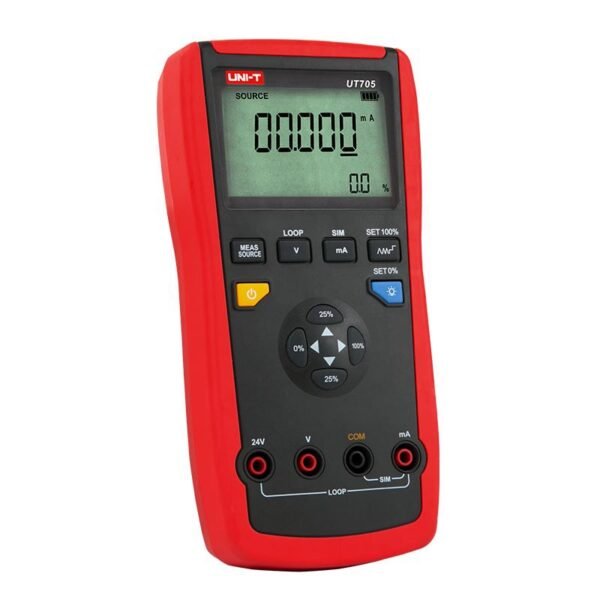

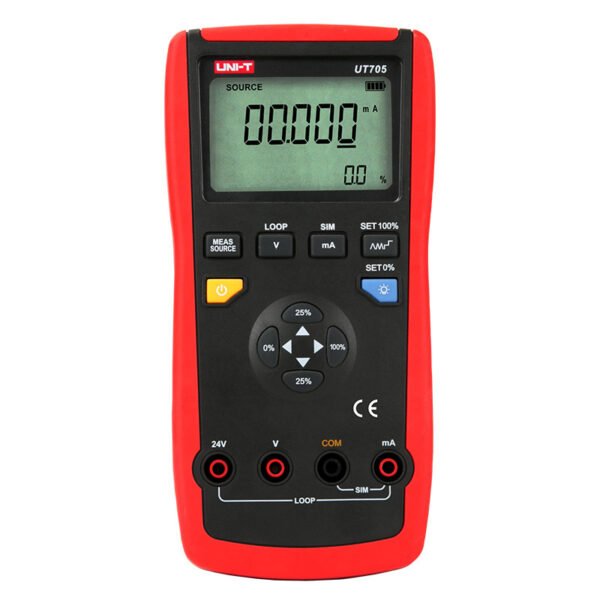

UT705 Single Function Loop Calibrator
UT705 is a high performance device for loop calibration and maintenance. Designed with high-accuracy DC current and transmitter analog current outputs, UT705 has DC voltage/current and loop current measurement functions with button settings, selectable steps and ramp outputs to help user work more efficiently and accurately. It features LCD backlight, auto power off and 1m drop proof.
Features:
1. Measures: DC voltage, DC current, 4-20mA loop current
2. Output functions: DC current, analog transmitter, 24V loop
3. Up to 0.02% accuracy current measurement at the same time
4. Automatic ramp for DC current output
5. Manual stepping and automatic stepping and ramping output
6. Stores and recalls setups
- Description
- Reviews (0)
Description
UT705 is a high performance device for loop calibration and maintenance. Designed with high-accuracy DC current and transmitter analog current outputs, UT705 has DC voltage/current and loop current measurement functions with button settings, selectable steps and ramp outputs to help user work more efficiently and accurately. It features LCD backlight, auto power off and 1m drop proof.
Features:
1. Measures: DC voltage, DC current, 4-20mA loop current
2. Output functions: DC current, analog transmitter, 24V loop
3. Up to 0.02% accuracy current measurement at the same time
4. Automatic ramp for DC current output
5. Manual stepping and automatic stepping and ramping output
6. Stores and recalls setups
Tech. Specifications:
| Specifications | Range | Accuracy |
| Measure accuracy | ||
| DC voltage (V) | 30.000V | ±(0.02+2) |
| DC current (A) | 24.000mA | ±(0.02+2) |
| Loop current | 24.000mA | ±(0.02+2) |
| Source accuracy | ||
| DC current (source) | 24.000mA | ±(0.02+2) |
| DC current (simulate) | 24.000mA | ±(0.02+2) |
| Features | ||
| Loop power function | Voltage: 24V | |
| Accuracy: 10% | ||
| Ramp functions | Source functions: Voltage, resistance, temperature | |
| Ramps: Slow ramp, fast ramp, 25% step-ramp | ||
| Step functions | Source functions: Voltage, resistance, temperature | |
| Steps: 25% of range, 100% of range | ||
| General Characterisitics | ||
| Power | 9V battery (6F22) | |
| Display | 63mm x 40mm | |
| Product color | Red and grey | |
| Product net weight | 410g | |
| Product size | 96mm x 193mm x 47mm | |
| Standard accessories | Test leads, battery | |
| Standard individual packing | Gift box, English manual, cloth bag | |
| Standard quantity per carton | 5pcs | |
| Standard carton measurement | 325mm x 225mm x 285mm | |
| Standard carton gross weight | 4.5kg | |
