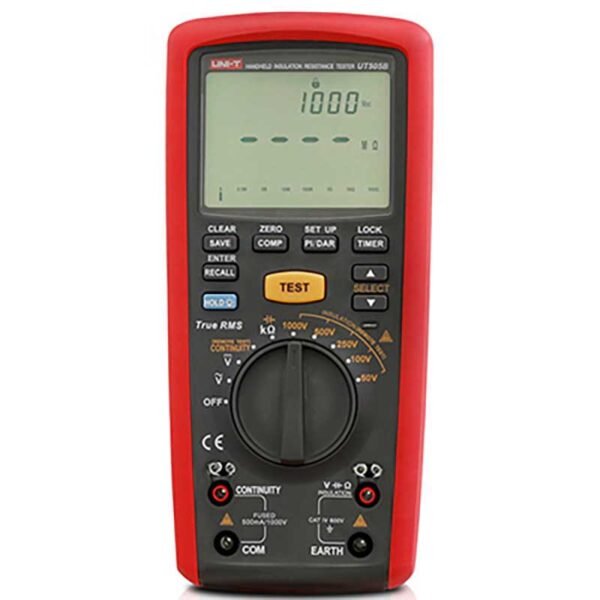

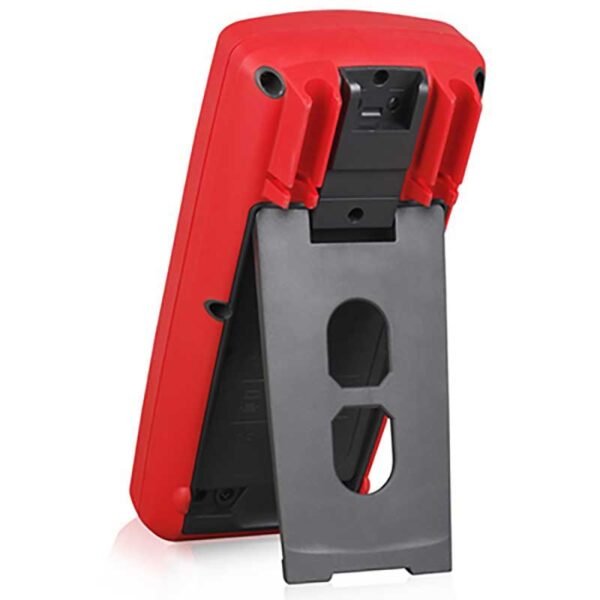

UT505B Handheld Insulation Resistance Tester

UT505B Handheld Insulation Resistance Tester

UT501A Insulation Resistance Tester
UT505A Handheld Insulation Resistance Tester
0 out of 5
( There are no reviews yet. )

UT505 series handheld true RMS insulation resistance testers combine features of a digital multimeter and insulation resistance tester. Aside from the  typical multimeter functions, these meters can also measure insulation resistance, PI, DAR, and automatically calculate resistance ratio to determine the insulation status.


Applications:
UT505 can be used in insulation resistance testing of precision tools, including motors, cables, transformers, switches, electrical appliances, and insulated materials.
Features:
1. Auto power off

2. LCD backlight
3. High voltage output alarm
4. 99-group data storage
5. Data hold
6. Meets IEC 61557:  61557-1:2007;  61557-2:2007;  61557-4:2007
Categories: , , Tags: , ,
Add to Wishlist
Compare

Description

UT505 series handheld true RMS insulation resistance testers combine features of a digital multimeter and insulation resistance tester. Aside from the  typical multimeter functions, these meters can also measure insulation resistance, PI, DAR, and automatically calculate resistance ratio to determine the insulation status.


Applications:
UT505 can be used in insulation resistance testing of precision tools, including motors, cables, transformers, switches, electrical appliances, and insulated materials.
Features:
1. Auto power off

2. LCD backlight
3. High voltage output alarm
4. 99-group data storage
5. Data hold
6. Meets IEC 61557:  61557-1:2007;  61557-2:2007;  61557-4:2007

Tech. Specifications:

Specifications Range UT505B
Insulation resistance (Ω)  50V 50V/100V/250V/500V/1000V 0%~20%
0.01MΩ~50MΩ ±(3%+3)
50MΩ~1GΩ ±(3%+3)
100V 1GΩ~10GΩ ±(10%+3)
0.01MΩ~100MΩ ±(3%+3)
100MΩ~1GΩ ±(3%+3)
250V 1GΩ~20GΩ ±(10%+3)
0.01MΩ~200MΩ ±(1.5%+5)
200MΩ~1GΩ ±(1.5%+5)
500V 1GΩ~50GΩ ±(10%+3)
0.01MΩ~500MΩ ±(1.5%+5)
500MΩ~1GΩ ±(1.5%+5)
1000V 1GΩ~100GΩ ±(10%+3)
0.1MΩ~2000MΩ ±(1.5%+5)
2GΩ~9.9GΩ ±(5%+3)
10GΩ~20GΩ ±(7%+3)
20GΩ~200GΩ ±(20%+3)
Load current 50V (R=50kΩ) 1mA 0%~10%
100V (R=100kΩ) 1mA 0%~10%
250V (R=250kΩ) 1mA 0%~10%
500V (R=500kΩ) 1mA 0%~10%
1000V (R=1MΩ) 1mA 0%~10%
Short circuit current <2mA
Leakage current (A) 10~2000μA ±(10%+3)
Low resistance (Ω) 0.01Ω~100Ω (about 5V/>200mA/20mA optional) ±(1.5%+3)
General resistance (Ω) 0.01kΩ~10MΩ ±(3%+3)
DC voltage (V) 0V~600V ±(2%+3)
AC voltage (V) 0V~600V ±(1.5%+5)
Frequency (Hz) 45~1kHz ±(0.1%+3)
Capacitance (F) 100pF~500μF ±(5%+5)
Features
Display count 6000
Auto range/True RMS √
Step voltage 10% steps at 50%~120% of range √
DAR 60s/15s and 60s/30s √
PI/Timing measurement √
Auto discharge √
Auto fuse check √
Analog bar graph √
Continuity buzzer √
Comparison measurement √
Low battery indication √
General Characterisitics
Power 1.5V battery (LR6) x  6
Display 78mm x 59mm
Product color Red and grey
Product net weight 630g
Product size 103mm x 225mm x 59mm
Standard accessories Batteries, test leads, test probes, alligator clips
Standard individual packing Carrying bag, gift box, English manual
Standard quantity per carton 20pcs
Standard carton measurement 515mm x 380mm x 385mm (0.075 CBM per standard carton)
Standard carton gross weight 20.8kg
Optional accessory Remote test lead
