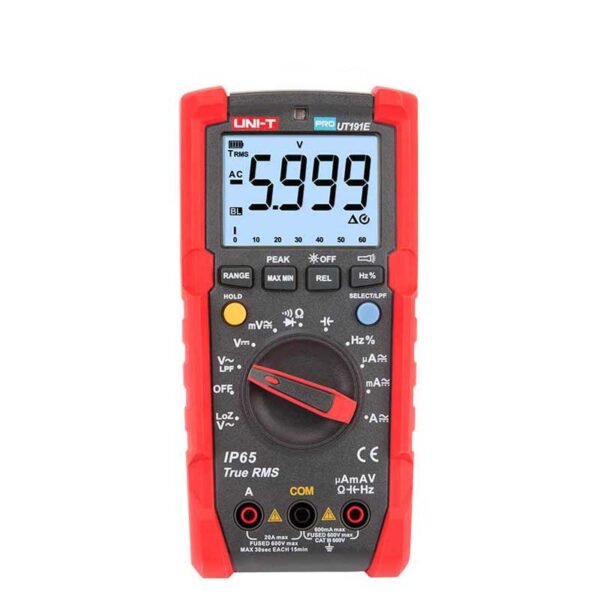

UT191E Professional Multimeter – Industrial Digital Multimeter

UT890C Digital Multimeter
UT213A 400A Digital Clamp Meter
0 out of 5
( There are no reviews yet. )

UT191 Series professional multimeters designed for industrial users. This CE/GS/cTUVus certified multimeter series complies with CAT III 600V and is IP65 rated, suitable for use in damp and dusty environments. UT191’s new function memory’ retains the latest mode setting the next time it is turned on, improving efficiency for users. UT191T supports accurate and precise temperature measurement.

Applications:
It is suitable for use in damp and dusty environments.
Features:
1. Measurement setting saved after power reset
2. IP65, 2m drop proof
3. True RMS/Peak value measurement
4. Auto backlight
5. 20A current measurement
6. LoZ AC measurement
Categories: , , Tags: , , ,
Add to Wishlist
Compare

Description

UT191 Series professional multimeters designed for industrial users. This CE/GS/cTUVus certified multimeter series complies with CAT III 600V and is IP65 rated, suitable for use in damp and dusty environments. UT191’s new function memory’ retains the latest mode setting the next time it is turned on, improving efficiency for users. UT191T supports accurate and precise temperature measurement.

Applications:
It is suitable for use in damp and dusty environments.
Features:
1. Measurement setting saved after power reset
2. IP65, 2m drop proof
3. True RMS/Peak value measurement
4. Auto backlight
5. 20A current measurement
6. LoZ AC measurement

Tech.Specifications:

Specifications Range UT191E
DC voltage (V) 600V ±(0.5%＋3)
AC voltage (V) 600V ±(0.7%＋3)
LoZ ACV (V) 600V ±(2%＋5)
ACV LPF 600V ±(2%＋5)
DC current (A) 20A ±(0.8%+3)
AC current (A) 20A ±(1%+3)
Resistance (Ω) 60MΩ ±(0.8%+2)
Capacitance (F) 60mF ±(3%+5)
Frequency (Hz) 10Hz~1MHz ±(0.1%+4)
Duty cycle 0.1%~99.9% ±(2%＋5)
ACV peak hold ±(2%+100)
Peak current detection ±(3%+100)
Features
Display count 6000
Sampling rate 3 times/second
Analog bar graph 31 sections
True RMS √
AC voltage frequency response 45Hz~400Hz
AC current frequency response 45Hz~400Hz
Diode/Continunity test √
Auto/Manual range √
Auto power off √
Low battery indication √
Data hold/MAX/MIN √
Function selection (SELECT) √
Flashlight/Auto backlight √
2m drop test/IP65 √
General Characteristics
Power 9V battery
LCD size 58mm x 42mm
Product net weight Red and grey
Product color 428g
Product size 180mm x 87mm x 59mm
Standard accessories Test lead, battery, carrying bag
Standard individual packing Gift box, English manual
Standard quantity per carton 10pcs
Standard carton measurement 545mm x 315mm x 335mm
Standard carton gross weight 8.8kg
