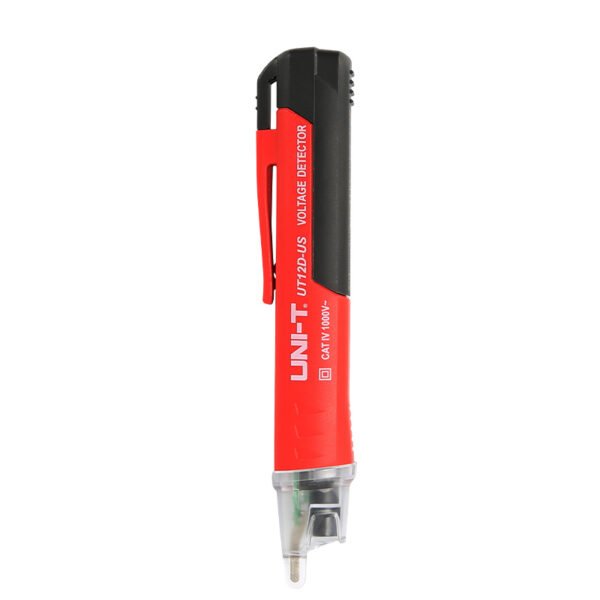

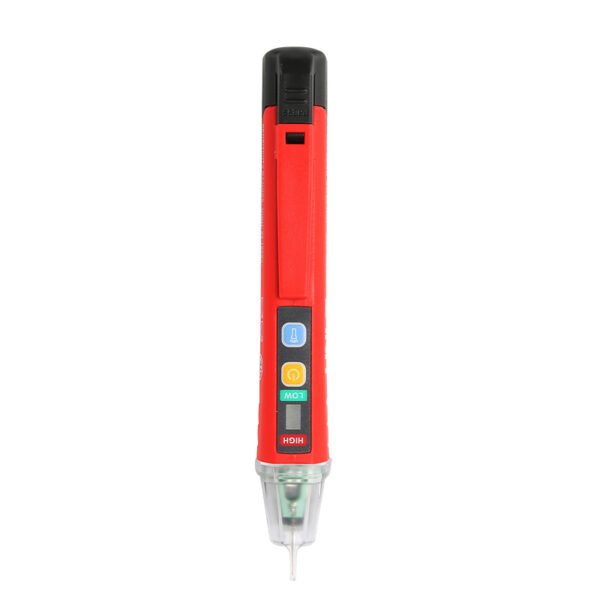

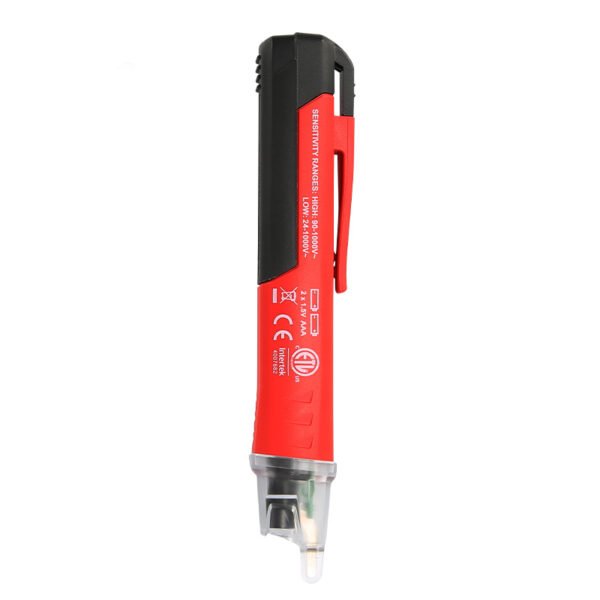

UT12D-US AC Voltage Detector (1)

UT12D-US AC Voltage Detector

UT12S-US AC Voltage Detector
UT12E-US AC Voltage Detector
0 out of 5
( There are no reviews yet. )

UT12 series non-contact AC voltage detectors are widely used in the maintenance of lowvoltage equipments such as conductors, cables, sockets, and other electrical/electronicsinstruments. It is a very handy tool for electricians.

Features:

1. Auto power off
2. Buzzer
3. LED indication
4. AC voltagedetection
5. High/Low voltagemode

Applications:
Low voltage mode: Low-voltage motor (<90V), audio systems, arc welding machines,underground mining lighting, cables with thick insulation layer and other weakelectromagnetic AC signals.
High voltage mode: Urban electric supply and three-phase systems (90~1000V). Forexample, power distribution units, electrical panels, electrical appliances.
Categories: , , Tag:
Add to Wishlist
Compare

Description

UT12 series non-contact AC voltage detectors are widely used in the maintenance of lowvoltage equipments such as conductors, cables, sockets, and other electrical/electronicsinstruments. It is a very handy tool for electricians.

Features:

1. Auto power off
2. Buzzer
3. LED indication
4. AC voltagedetection

5. High/Low voltagemode

Applications:
Low voltage mode: Low-voltage motor (<90V), audio systems, arc welding machines,underground mining lighting, cables with thick insulation layer and other weakelectromagnetic AC signals.
High voltage mode: Urban electric supply and three-phase systems (90~1000V). Forexample, power distribution units, electrical panels, electrical appliances.

Specifications
Model UT12D-US
AC voltage (Low) 24V~1000V
AC voltage (High) 90V~1000V
Frequency range 50/60Hz
Built-in flashlight √
※Audible (buzzer) and visual (LED) indication √
Buzzer √
LED indication √
Auto power off √
Low voltage indication √
Drop test 1m
General Characteristics
Power 1.5V battery (R03) x 2
Product color Red and grey
Product net weight 50g
Product size 150mm x 18 mm x 23mm
Standard accessories Batteries
Standard individual packing Blister, English manual
Standard quantity per carton 40pcs
Standard carton measurement 350mm x 245 mm x 210mm
Standard carton gross weight About 3.6kg
