Description

In recent years, with the rapid development of the new energy vehicle industry, the application of batteries has become more and more extensive. Compared with traditional fuel vehicles, electric vehicles driven by batteries enjoy the advantages of cleanliness, environmental protection, and economy brought by batteries as a power source, but also bring some hidden safety hazards inherent in batteries. These hidden dangers often occur in the production and maintenance process.

As an energy storage device, in the process of production, use, and maintenance, due to its own materials and structural composition, when it is out of control, it is prone to corrosion, heat release, combustion, and explosion. Therefore, when the battery is out of control, how to store it effectively and safely to avoid accidents caused by the battery out of control is a major problem that everyone is currently facing. The battery emergency safety storage developed by SYSBEL can effectively solve the problem of speeding up.

The battery emergency safety storage box developed by SYSBEL is specially used in the new energy vehicle industry. During battery production, assembly, testing, and maintenance, when the battery has thermal runaway, heat release, etc., the battery will be transferred into the emergency safety storage box in time. , which can effectively avoid the hazards caused by battery combustion, corrosion, and explosion, and effectively protect on-site property and personal safety.

01 Product Features

Explosion Vents and Pressure Relief Valves   There are explosion vents and pressure relief valves on the top, which can effectively isolate the impact of battery explosion on the outside world
	Internally lined for fire protection and corrosion protection   High-quality fire-proof expansion material is pasted on the joint of the door seam, which has excellent fire-proof performance and anti-corrosion performance

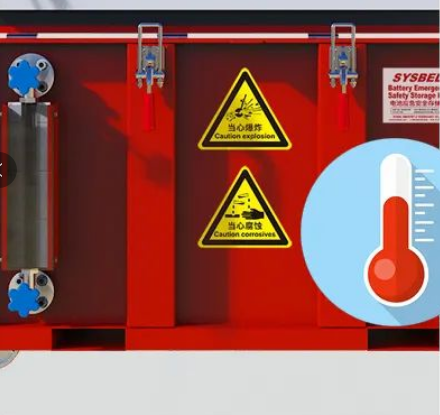

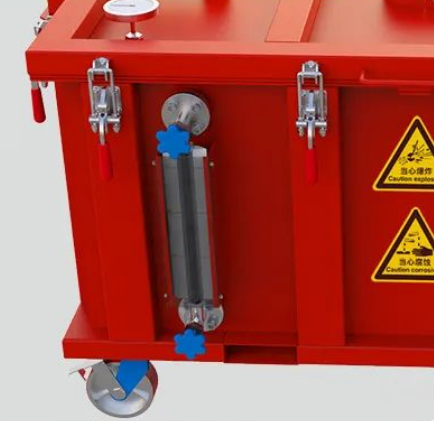

Equipped with level gauge   The front side of the box is equipped with a liquid level gauge, which can effectively observe the liquid level in the box. The glass tube is made of high borosilicate material, which has a certain fireproof performance
	Equipped with temperature monitoring device   Can effectively monitor the internal temperature of the box, temperature display range: 0~800°C

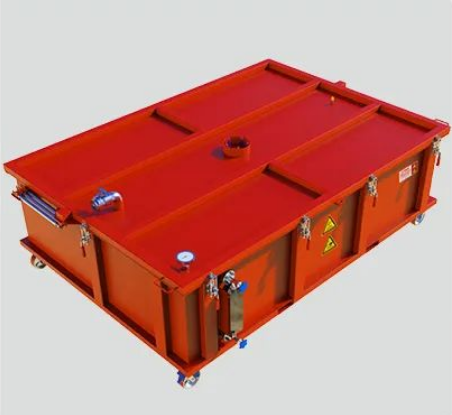

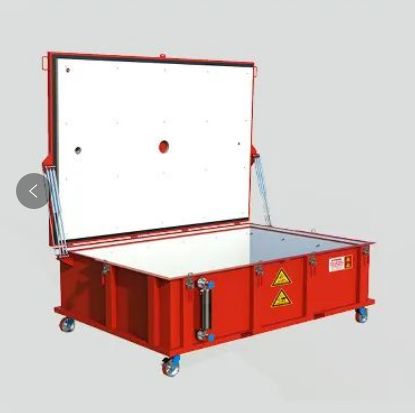

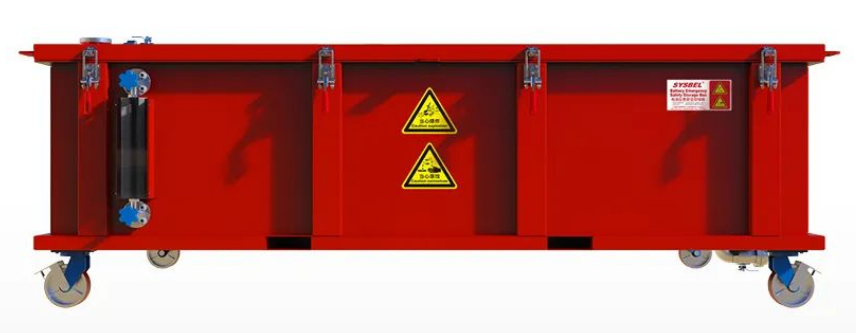

1) The whole is composed of a 5mm steel plate shell and an inner lining, with an explosion vent and a pressure relief valve on the top, which can effectively isolate the impact of the battery explosion on the outside world.

2) The interior of the box is made of lining fireproof and anti-corrosion materials, and the joints of the doors are pasted with high-quality fire-proof expansion materials, which have excellent fire-proof and anti-corrosion properties.

3) There is a 2″ water inlet assembly on the top of the tank cover, which can be connected to the national standard fire hydrant connector for water injection and cooling of the internal battery; there is a 2″ water outlet assembly at the bottom, when the water level reaches a certain position, you can choose to open the water outlet assembly The ball valve is used for drainage treatment.

4) The box cover is equipped with a temperature monitoring device, which can effectively monitor the internal temperature of the box, and the temperature display range: 0~800°C.

5) The front side of the tank is equipped with a liquid level gauge, which can effectively observe the liquid level in the tank. The glass tube is made of high borosilicate material, which has a certain fireproof performance.

6) There are four load-bearing wheels at the bottom, each with a load-bearing capacity of 1000KG, to ensure high load-bearing transfer of the box.

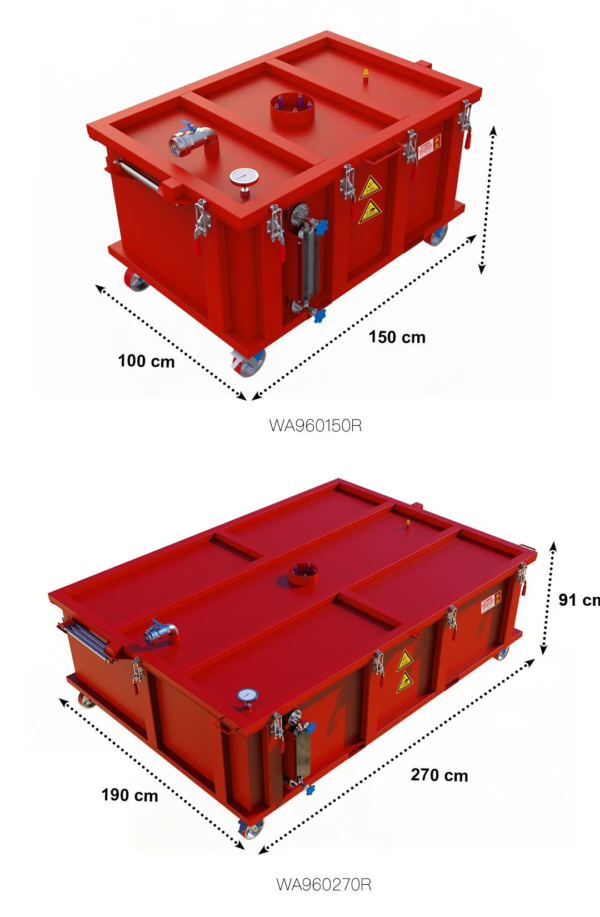

Certified	Color	Dimensions (HxWxD/cm)	Package Dimensions (HxWxD/cm)	Applicable Battery Size Range (HxWxD/cm)	Door Opening Angle	Diameter of External Fire Hydrant	Loading(KG)	Model
CE	red	91x150x100	112x174x121.5	MAX:40x110x70	85~90	DN50	1000	WA960150R
		91x270x190	112x294x211.5	MAX:40x230x160				WA960270R

*Color, size, fire hydrant interface, etc. can be customized

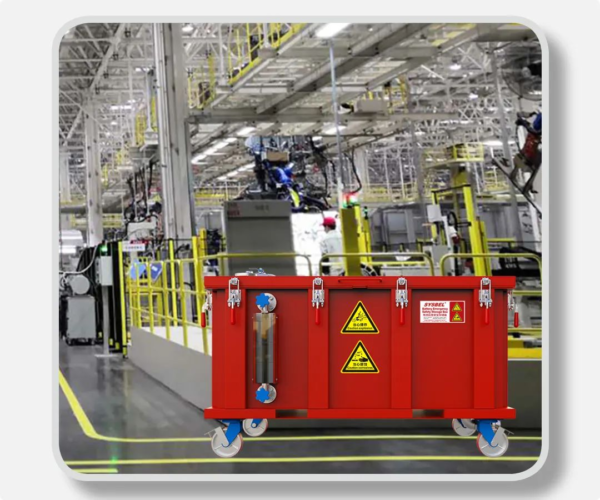

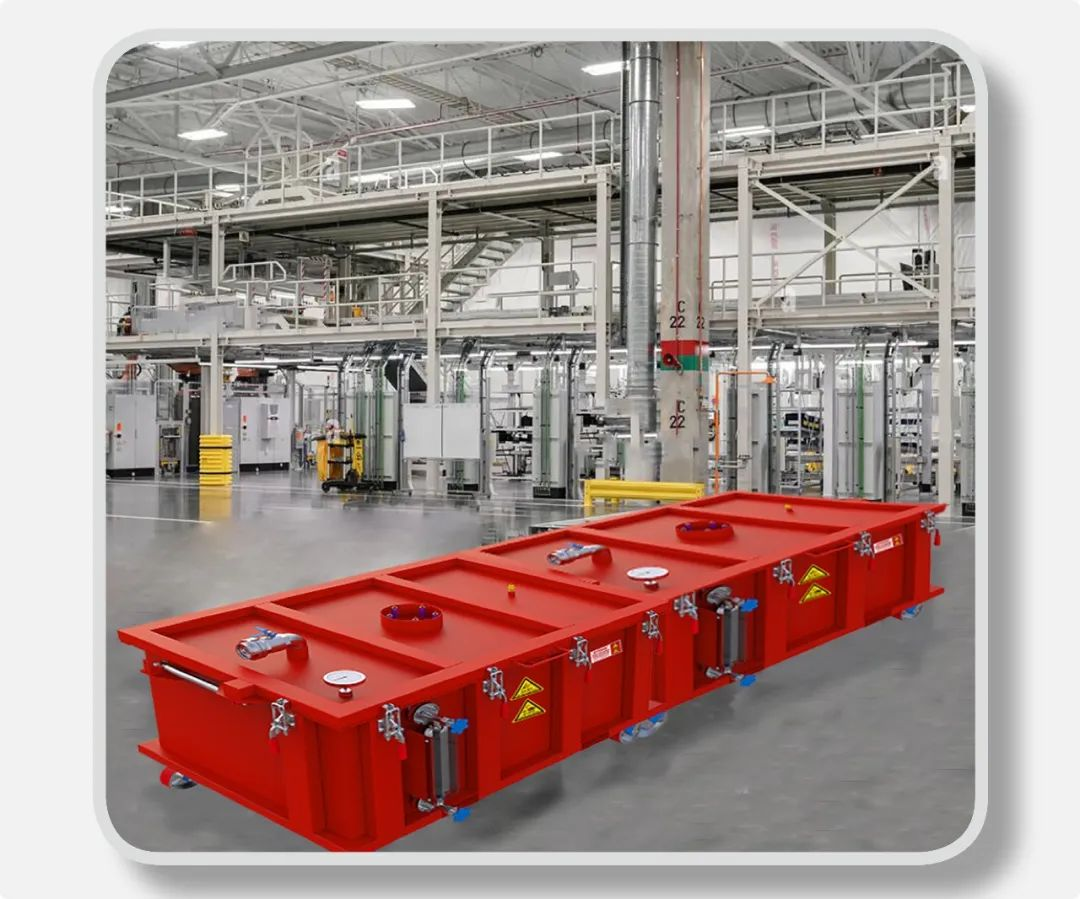

02 Application Scenario
